SONG CHUAN

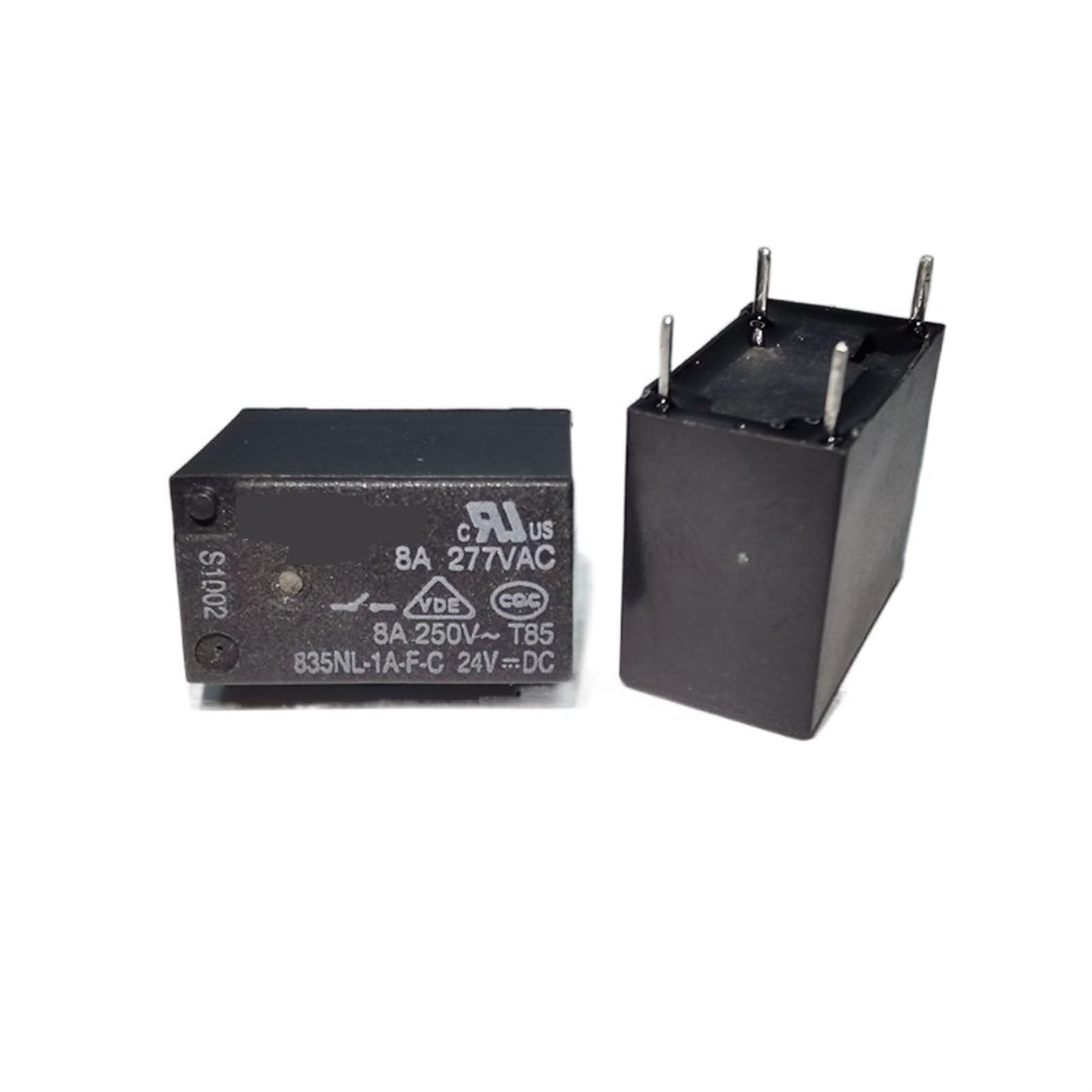

Relay 835NL-1A-B-C 24VDC 8A 4PIN

Relay 835NL-1A-B-C 24VDC 8A 4PIN

Regular price 14.95 SAR
Regular price Sale price 14.95 SAR
Sale Sold out

Relay 835NL-1A-BC 24VDC Song Ghuan 8A 277VAC  - used in various electronic circuits.

One pair of open contacts

Characteristics

  • The supply current of the winding is constant
  • Classification of the number of switching positions two-position
  • The operating current is no more than 18.8 mA
  • Winding resistance 1280 Ohm
  • Nominal working voltage 24 V
  • Maximum switching constant voltage and current 30VDC 8A
  • Maximum switching AC voltage and current 277VAC 8A
  • Response time 10 ms
  • Release time 5 ms
  • Insulation resistance 100 Mohm
  • Contact material AgSnO / Agni
  • Operating temperature -40 ... + 85 ° C
  • Manufacturer Song Ghuan
