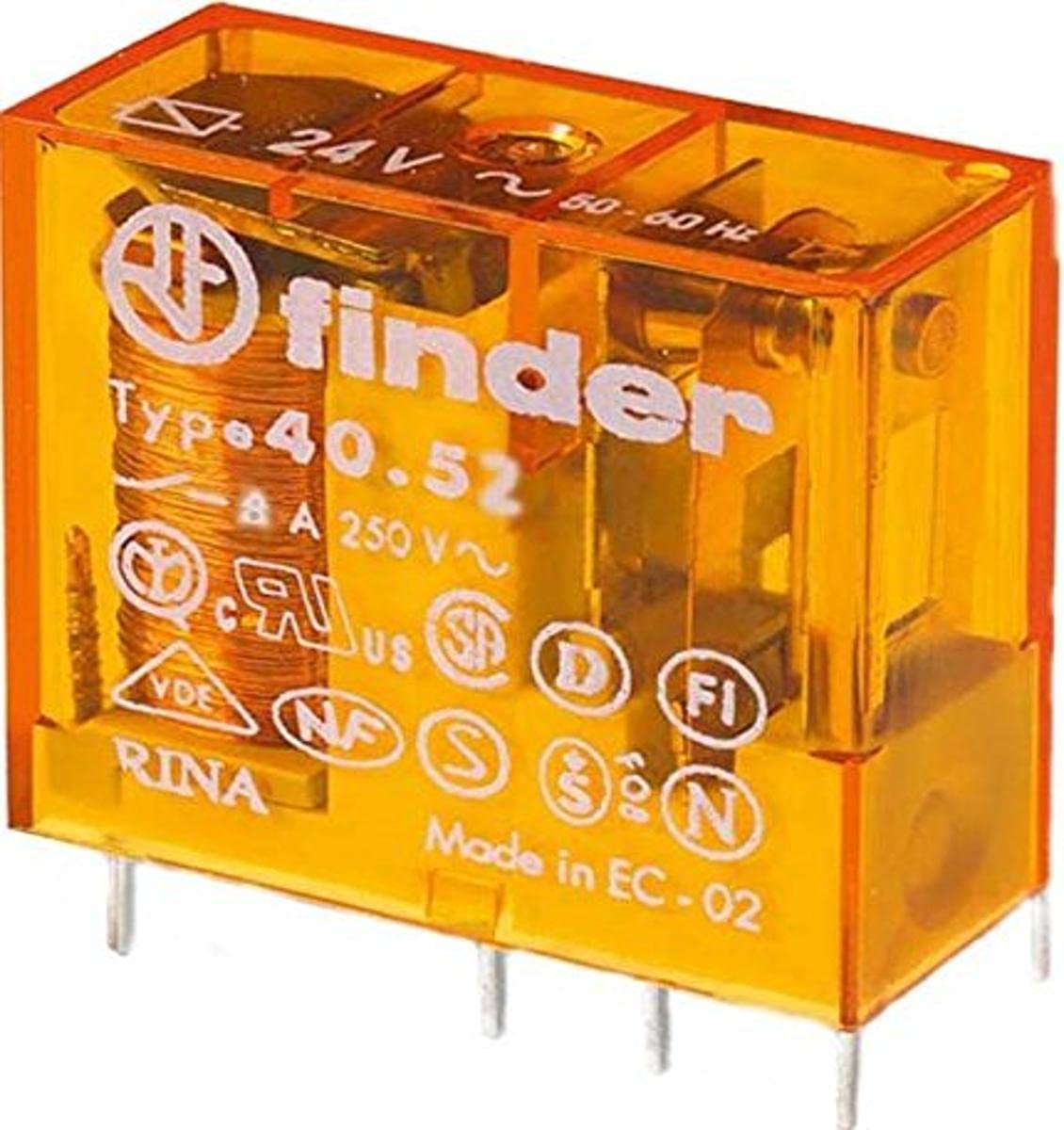

POWER RELAY 24VAC 8A 8PIN 40.52.8.024.0000

RELAY, DPDT, 24VAC, 8A Product Range:40 Series Contact Configuration:DPDT Coil Voltage:24VAC Contact Current:8A Relay Mounting:Through Hole Coil Type:- Contact Voltage VAC:250VAC Relay Type:Power - General Purpose Relay Terminals:Solder Contact Voltage VDC:- Contact Material:Silver Nickel Coil Resistance:320ohm Approvals & Standards:CSA, UL, VDE SVHC:No SVHC (17-Dec-2015) Approval Bodies:BEAB, CSA, DEMKO, IMQ, SEMKO, NF-USE, SETI, SEV, UL, VDE Approval Category:BEAB, CSA, DEMKO, IMQ, NF-USE, SEMKO, SETI, SETI, SEV, UL, VDE Coil Current:45mA Coil Operating Lower Percent Limit:80% Coil Operating Upper Percent Limit:150% Coil Voltage VAC Nom:24V Contact Current Max:15A Contact Voltage AC Max:240V Contact Voltage AC Nom:250V Contact Voltage DC Max:30V Current Rating:8A DC Coil Power:500mW External Depth:25mm External Height:29mm External Length / Height:29mm External Width:12.4mm Nom Operating Power:1.2VA Operating Temperature Max:70?C Operating Time:10ms
