TAKAMISAWA

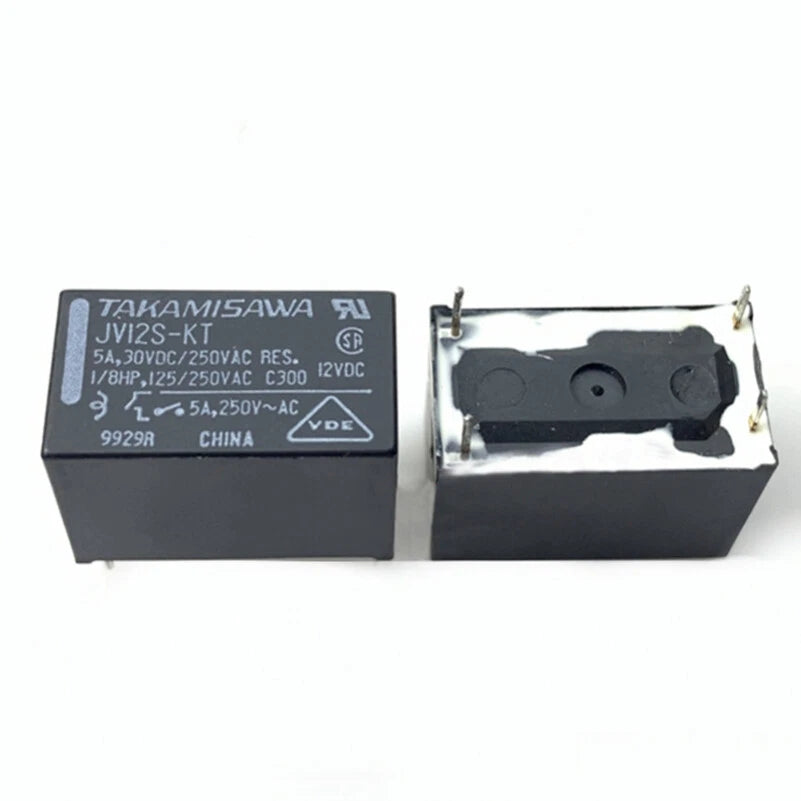

JV12S-KT 12VDC Power Relay 4Pins
JV12S-KT 12VDC Power Relay 4Pins
Regular price
14.95 SAR
Regular price
Sale price
14.95 SAR
Unit price
/
per
Couldn't load pickup availability
FEATURES
UL, CSA, VDE, SEMKO, CQC recognized
UL class B (130°C) insulation
Low profile and space saving
Height: 12.5 mm
Mounting space: 175 mm
High sensitivity in small package
Operating power: 0.112 to 0.13 W
Nominal power: 0.2 to 0.3 W
High insulation with reinforced insulation system (between
coil and contacts)
Insulation distance: 8 mm
Dielectric strength: 5,000 VAC
Surge strength: 10,000 V
Plastic materials
UL94 flame class V-0
UL CTI level class 2
Plastic sealed type
Cadmium free contacts
RoHS compliant since date code: 0434R
