15N60 Datasheet

   Type Designator: 15N60
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pdⓘ - Maximum Power Dissipation: 312 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 600 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
   |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
   |Id|ⓘ - Maximum Drain Current: 15 A
   Tjⓘ - Maximum Junction Temperature: 150 °C
   Qgⓘ - Total Gate Charge: 270 nC
   trⓘ - Rise Time: 200 nS
   Cossⓘ - Output Capacitance: 270 pF
   Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.5 Ohm

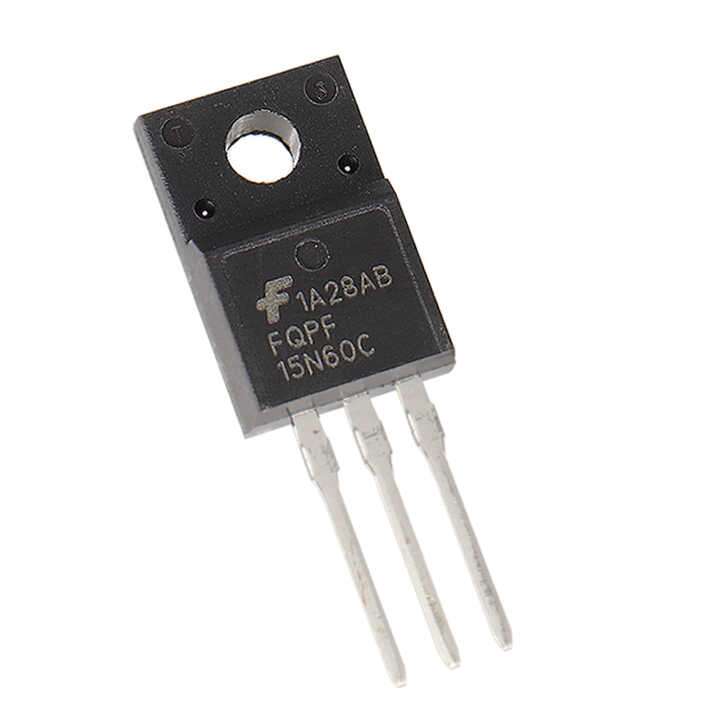

   Package: TO-247 TO-3P TO-220F1
