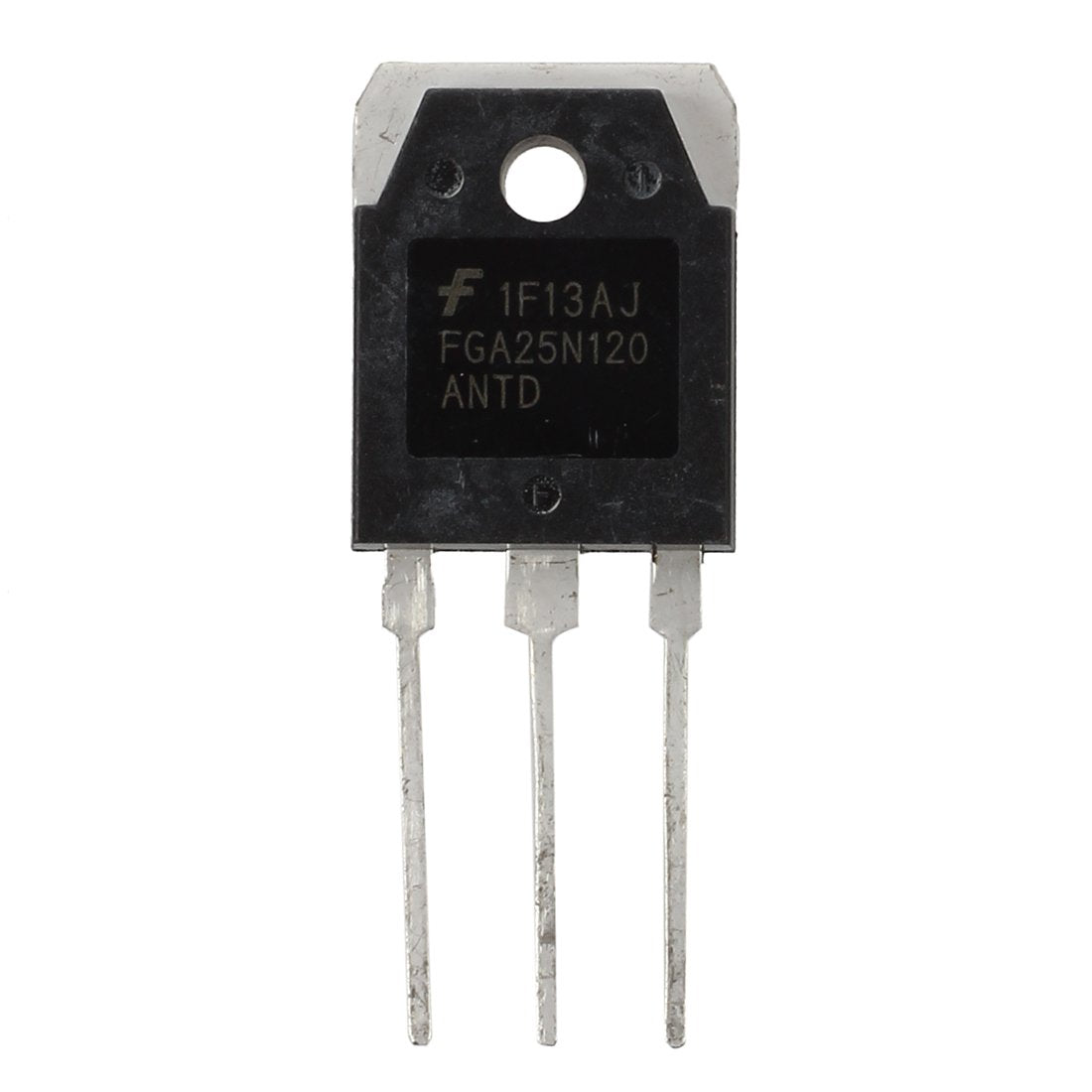

FGA25N120ANTD Datasheet

   Type Designator: FGA25N120ANTD
   Type: IGBT + Anti-Parallel Diode
   Type of IGBT Channel: N
   Pcⓘ - Maximum Power Dissipation: 312 W
   |Vce|ⓘ - Maximum Collector-Emitter Voltage: 1200 V
   |Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V
   |Ic|ⓘ - Maximum Collector Current: 50 A @25℃
   |VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 2 V @25℃
   |VGEth|ⓘ - Maximum G-E Threshold Voltag: 7.5 V
   Tjⓘ - Maximum Junction Temperature: 150 ℃
   trⓘ - Rise Time, typ: 60 nS
   Coesⓘ - Output Capacitance, typ: 130 pF
   Qgⓘ - Total Gate Charge, typ: 200 nC
   Package: TO3P
