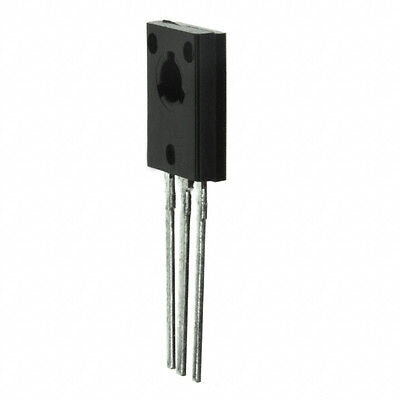

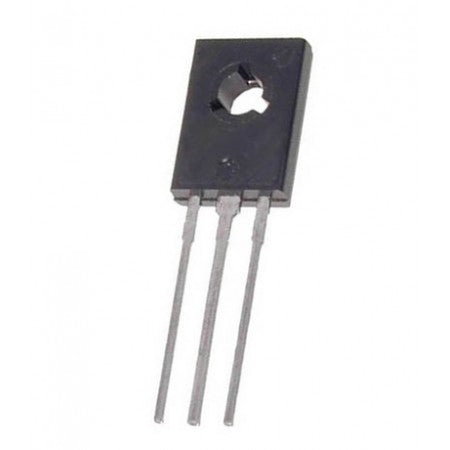

2SC1566 C1566 NPN 250V 120mA TO-126 Transistor

Type Designator: 2SC1566

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 3 W

Maximum Collector-Base Voltage |Vcb|: 250 V

Maximum Collector-Emitter Voltage |Vce|: 230 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 0.12 A

Max. Operating Junction Temperature (Tj): 200°C

Transition Frequency (ft): 40 MHz

Forward Current Transfer Ratio (hFE), MIN: 20

Noise Figure, dB: -

Package: TO126
