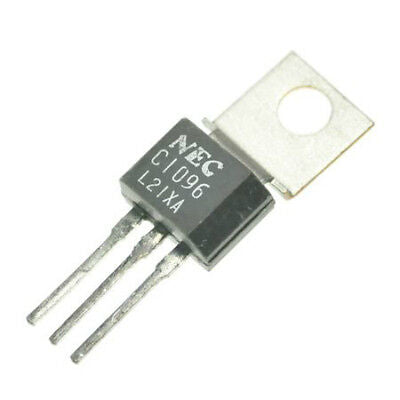

2SC1096 NPN 40V 3A TO-202 Transistor

Type Designator: 2SC1096

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 10 W

Maximum Collector-Base Voltage |Vcb|: 40 V

Maximum Collector-Emitter Voltage |Vce|: 35 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 3 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 60 MHz

Forward Current Transfer Ratio (hFE), MIN: 60

Noise Figure, dB: -

Package: X104-1
