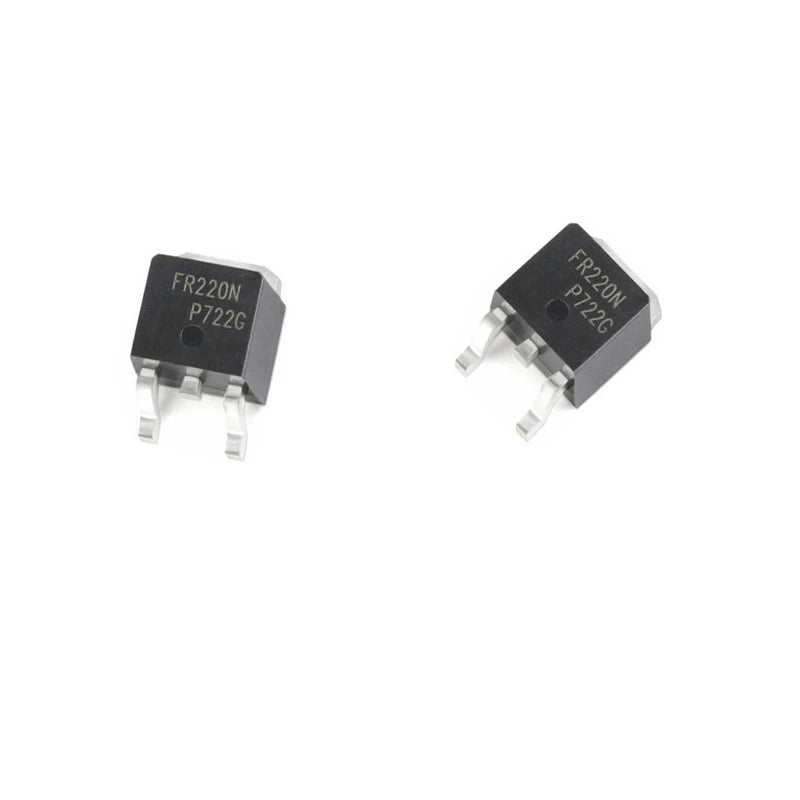

IRFR220N Datasheet

   Type Designator: IRFR220N
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pdⓘ - Maximum Power Dissipation: 43 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 200 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
   |Id|ⓘ - Maximum Drain Current: 5 A
   Tjⓘ - Maximum Junction Temperature: 175 °C
   Qgⓘ - Total Gate Charge: 15 nC
   trⓘ - Rise Time: 11 nS
   Cossⓘ - Output Capacitance: 53 pF
   Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.6 Ohm
   Package: DPAK
