FGL40N120AND Datasheet

   Type Designator: FGL40N120AND
   Type: IGBT + Anti-Parallel Diode
   Type of IGBT Channel: N
   Pcⓘ - Maximum Power Dissipation: 500 W
   |Vce|ⓘ - Maximum Collector-Emitter Voltage: 1200 V
   |Vge|ⓘ - Maximum Gate-Emitter Voltage: 25 V
   |Ic|ⓘ - Maximum Collector Current: 64 A @25℃
   |VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 2.6 V @25℃
   |VGEth|ⓘ - Maximum G-E Threshold Voltag: 7.5 V
   Tjⓘ - Maximum Junction Temperature: 150 ℃
   trⓘ - Rise Time, typ: 20 nS
   Coesⓘ - Output Capacitance, typ: 370 pF
   Qgⓘ - Total Gate Charge, typ: 25 nC

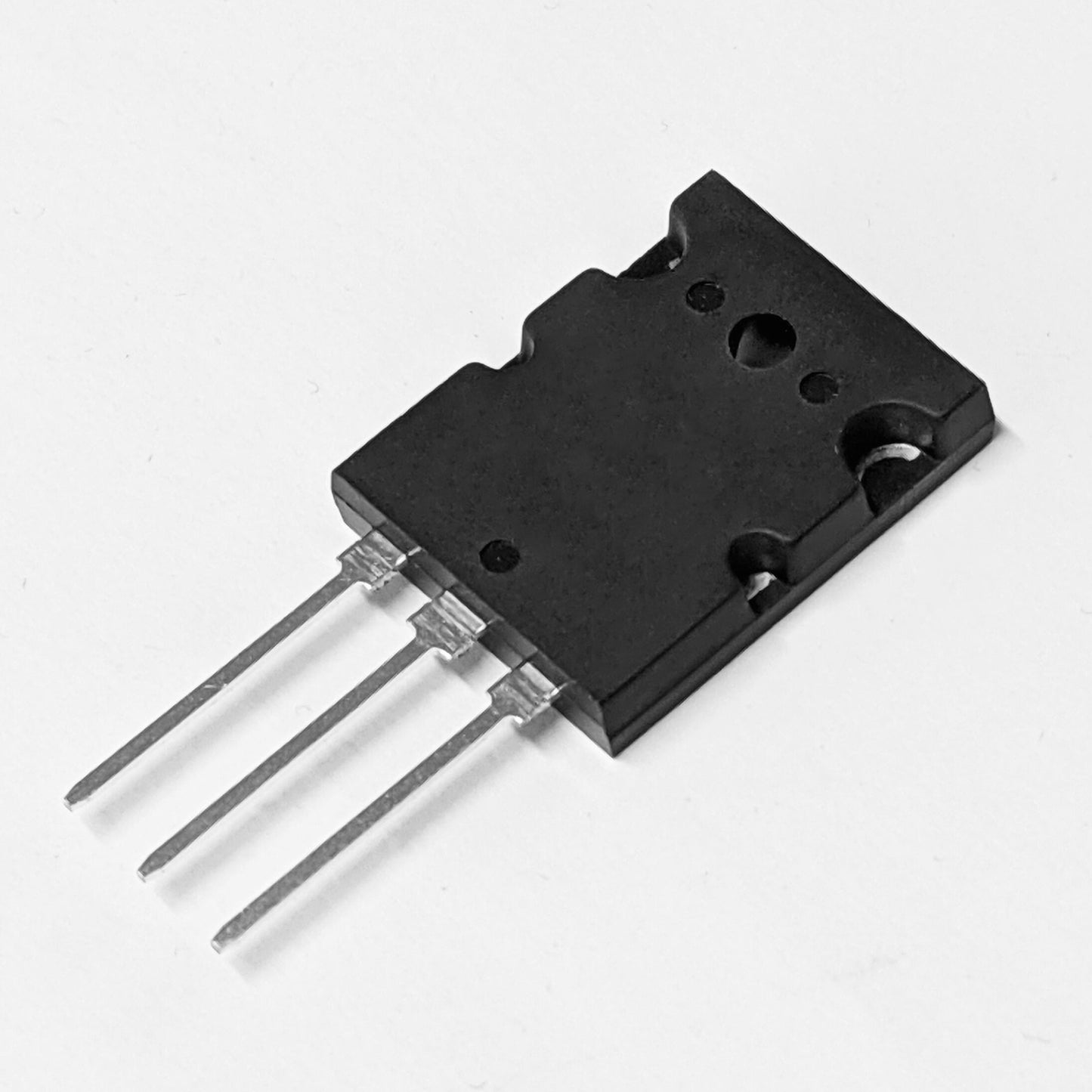

   Package: TO264
