FGH75T65SHD Datasheet

   Type Designator: FGH75T65SHD
   Type: IGBT + Anti-Parallel Diode
   Type of IGBT Channel: N
   Pcⓘ - Maximum Power Dissipation: 455 W
   |Vce|ⓘ - Maximum Collector-Emitter Voltage: 650 V
   |Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V
   |Ic|ⓘ - Maximum Collector Current: 150 A @25℃
   |VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 1.6 V @25℃
   |VGEth|ⓘ - Maximum G-E Threshold Voltag: 7.5 V
   Tjⓘ - Maximum Junction Temperature: 175 ℃
   trⓘ - Rise Time, typ: 56 nS
   Coesⓘ - Output Capacitance, typ: 179 pF
   Qgⓘ - Total Gate Charge, typ: 123 nC

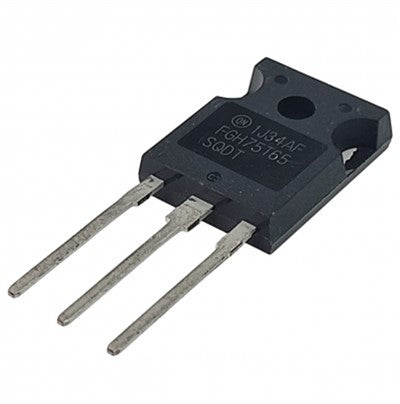

   Package: TO247
