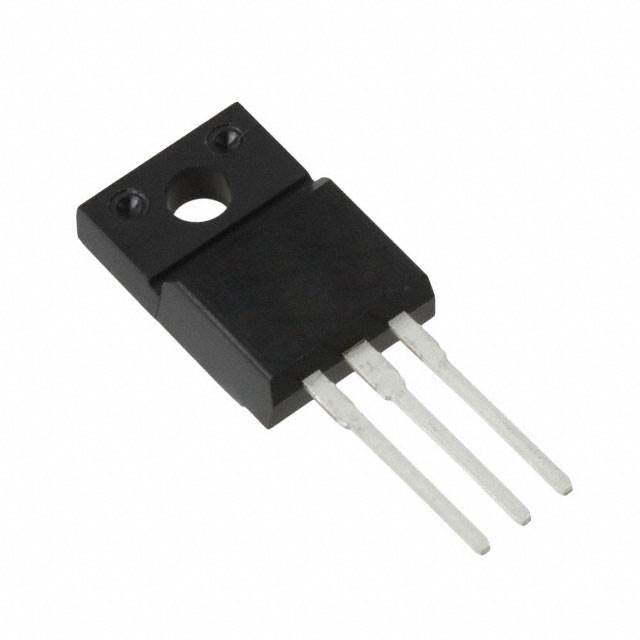

2SC5000 C5000 NPN 50V 10A TO-220 Transistor

Type Designator: 2SC5000

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 25 W

Maximum Collector-Base Voltage |Vcb|: 80 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 10 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 90 MHz

Collector Capacitance (Cc): 90 pF

Forward Current Transfer Ratio (hFE), MIN: 120

Noise Figure, dB: -

Package: TO220NIS
