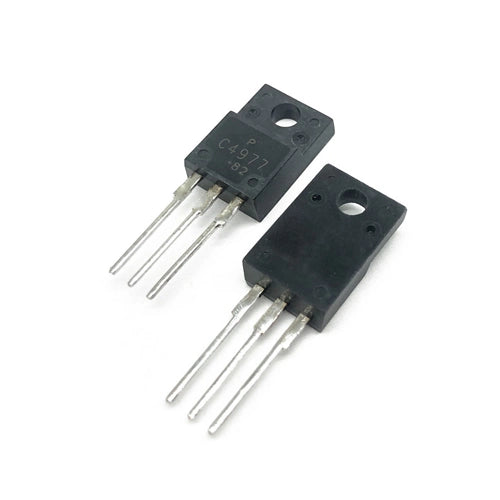

2SC4977 C4977 NPN 400V 7A TO-220 Transistor

Type Designator: 2SC4977
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 40 W
   Maximum Collector-Base Voltage |Vcb|: 450 V
   Maximum Collector-Emitter Voltage |Vce|: 400 V
   Maximum Emitter-Base Voltage |Veb|: 8 V
   Maximum Collector Current |Ic max|: 7 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Forward Current Transfer Ratio (hFE), MIN: 10
   Noise Figure, dB: -
   Package: TO220F
