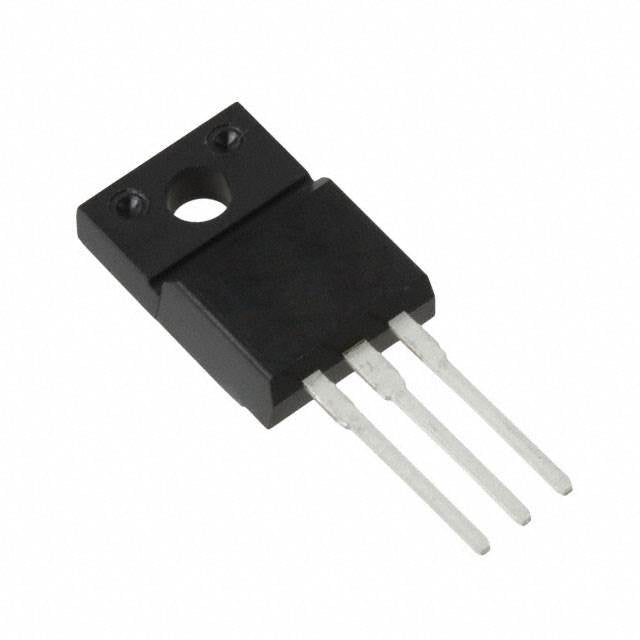

2SC4161 C4161 NPN 400V 7A TO-220 Transistor

Type Designator: 2SC4161

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 30 W

Maximum Collector-Base Voltage |Vcb|: 500 V

Maximum Collector-Emitter Voltage |Vce|: 400 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 7 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 20 MHz

Collector Capacitance (Cc): 80 pF

Forward Current Transfer Ratio (hFE), MIN: 15

Noise Figure, dB: -

Package: TO220F
