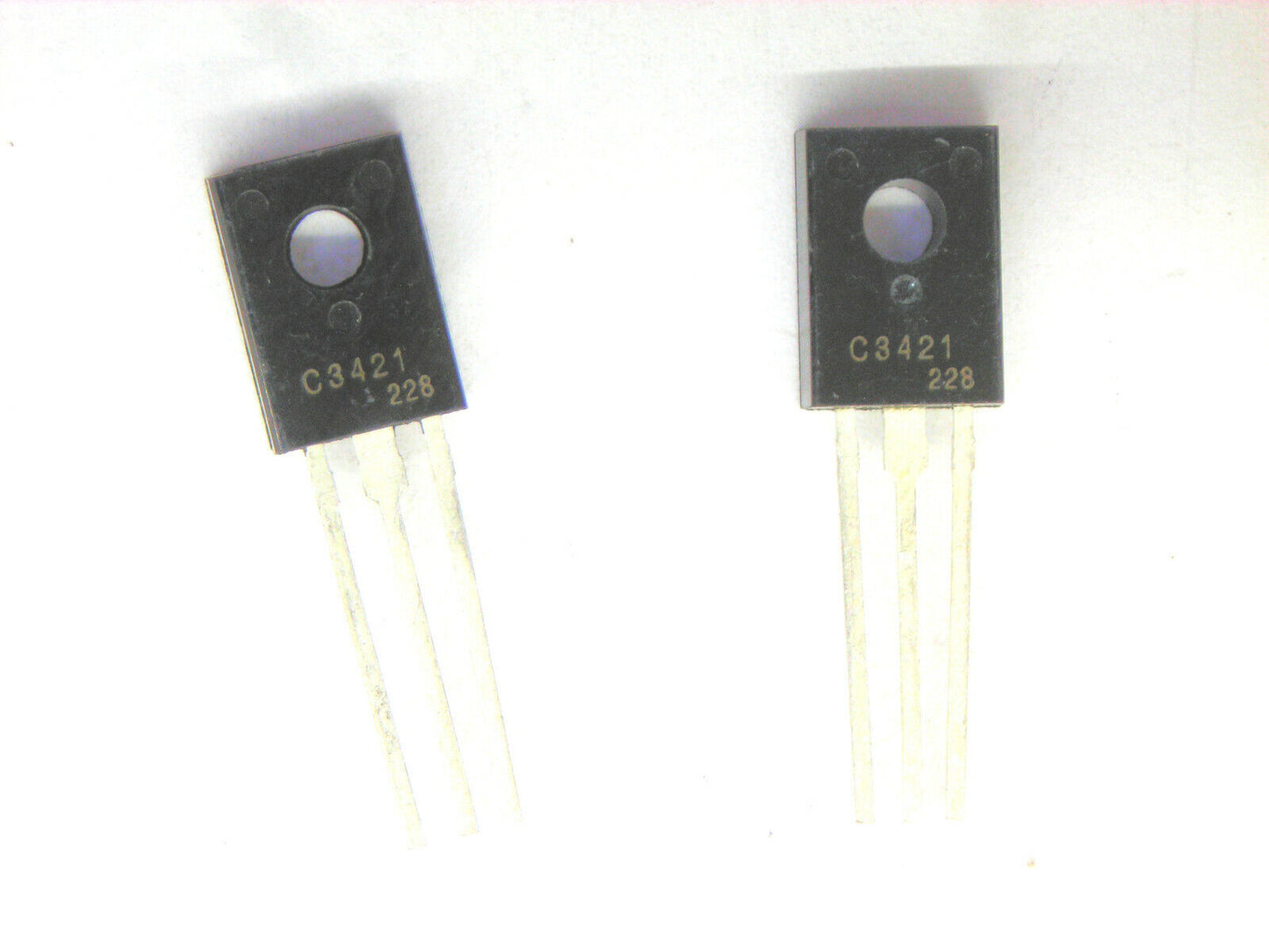

2SC3421 C3421 NPN 120V 1A ITO-126 Transistor

Type Designator: 2SC3421

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 10 W

Maximum Collector-Base Voltage |Vcb|: 120 V

Maximum Collector-Emitter Voltage |Vce|: 120 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 1 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 120 MHz

Collector Capacitance (Cc): 15 pF

Forward Current Transfer Ratio (hFE), MIN: 80

Noise Figure, dB: -

Package: ISO126
