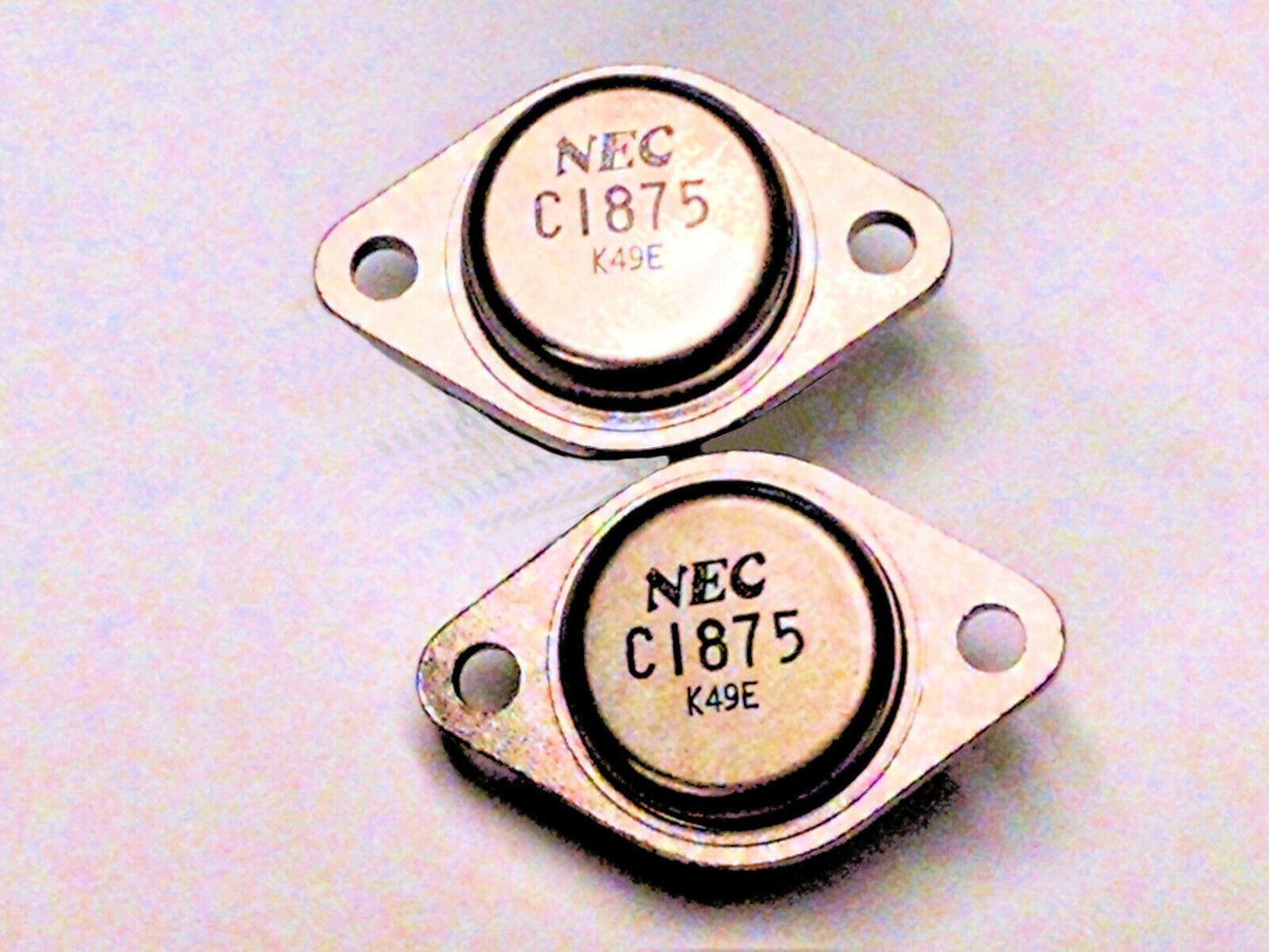

2SC1875 C1875 NPN 1400V 3.5A TO-3 Transistor

Type Designator: 2SC1875

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 50 W

Maximum Collector-Base Voltage |Vcb|: 1400 V

Maximum Collector-Emitter Voltage |Vce|: 500 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 3.5 A

Max. Operating Junction Temperature (Tj): 150 °C

Forward Current Transfer Ratio (hFE), MIN: 5

Noise Figure, dB: -

Package: TO3
