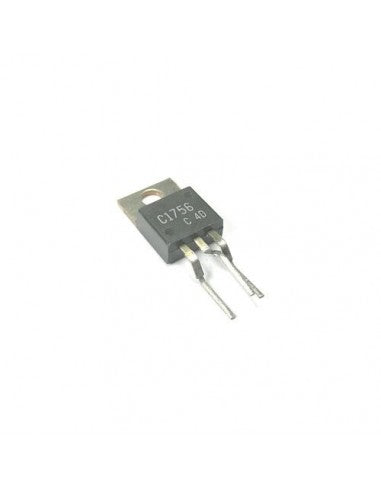

2SC1756 C1756 Transistor NPN 300V 200mA TO-220

Type Designator: 2SC1756

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 15 W

Maximum Collector-Base Voltage |Vcb|: 300 V

Maximum Collector-Emitter Voltage |Vce|: 300 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 0.2 A

Max. Operating Junction Temperature (Tj): 180 °C

Transition Frequency (ft): 50 MHz

Collector Capacitance (Cc): 5.3 pF

Forward Current Transfer Ratio (hFE), MIN: 40

Noise Figure, dB: -

Package: TO220
