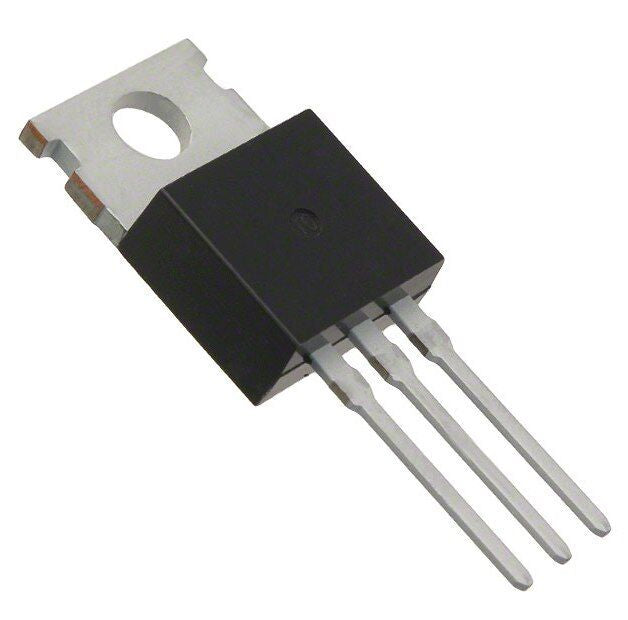

2SC1683 C1683 NPN 150V 500mA TO-220 Transistor

Type Designator: 2SC1683

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 20 W

Maximum Collector-Base Voltage |Vcb|: 200 V

Maximum Collector-Emitter Voltage |Vce|: 150 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.5 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 75 MHz

Forward Current Transfer Ratio (hFE), MIN: 60

Noise Figure, dB: -

Package: TO220
