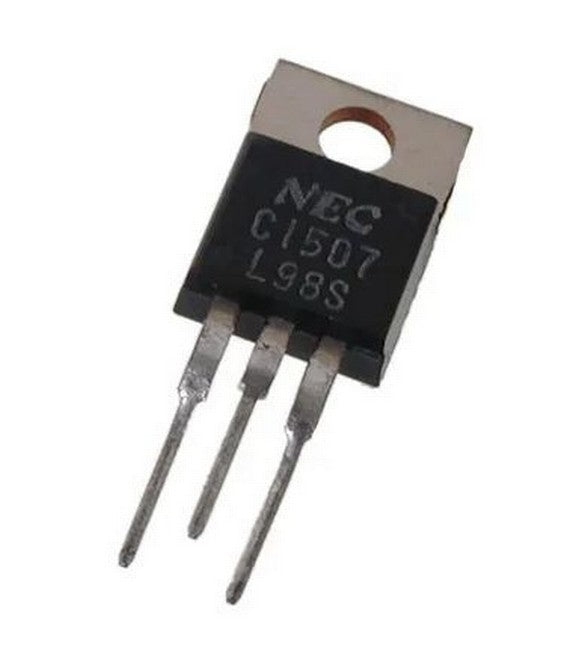

2SC1507 C1507 Transistor PNP 300V 0.25A 12W

Type Designator: 2SC1507

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 12 W

Maximum Collector-Base Voltage |Vcb|: 300 V

Maximum Collector-Emitter Voltage |Vce|: 250 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 0.25 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 25 MHz

Forward Current Transfer Ratio (hFE), MIN: 60

Noise Figure, dB: -

Package: TO220
