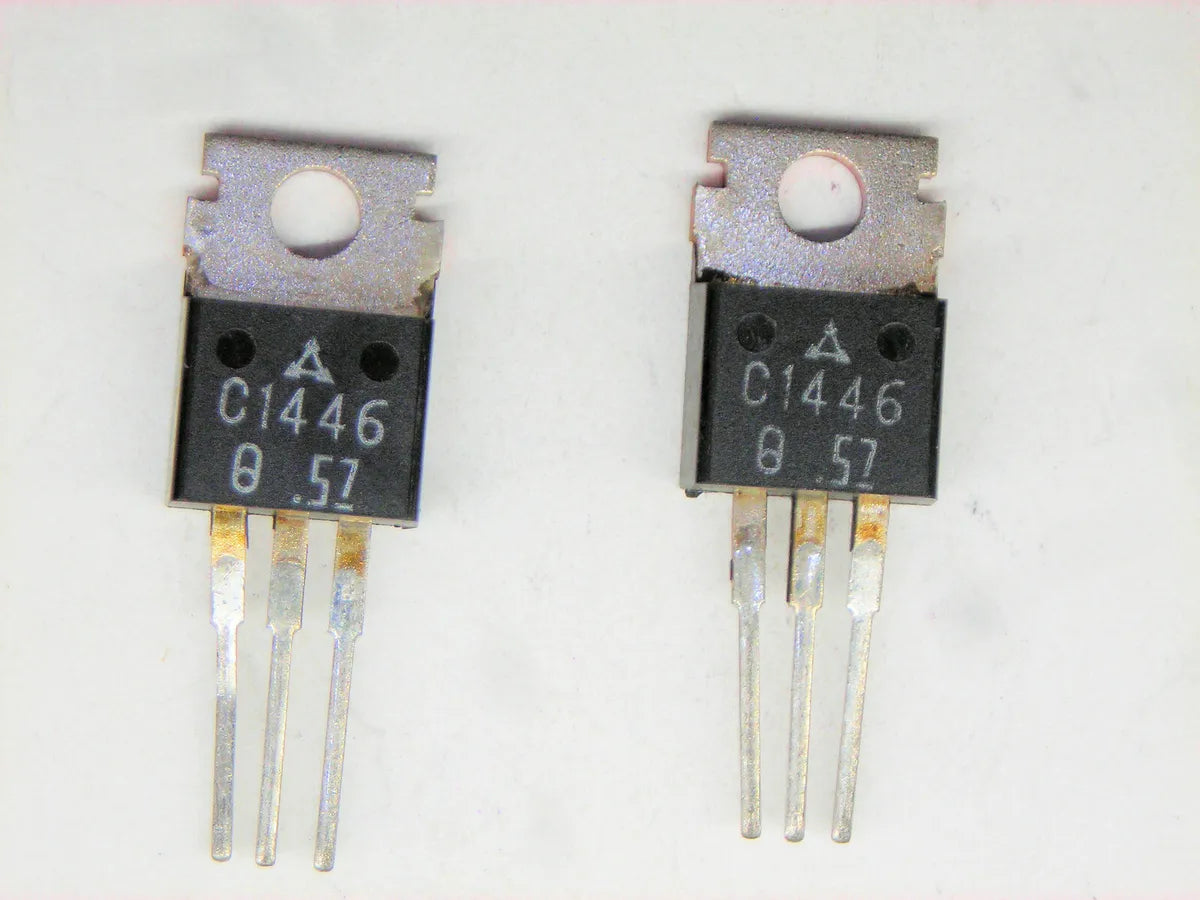

2SC1446 C1446 NPN 300V 150mA TO-220 Transistor

Type Designator: 2SC1446

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 10 W

Maximum Collector-Base Voltage |Vcb|: 300 V

Maximum Collector-Emitter Voltage |Vce|: 300 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.15 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 27 MHz

Collector Capacitance (Cc): 16 pF

Forward Current Transfer Ratio (hFE), MIN: 30

Noise Figure, dB: -

Package: TO220
