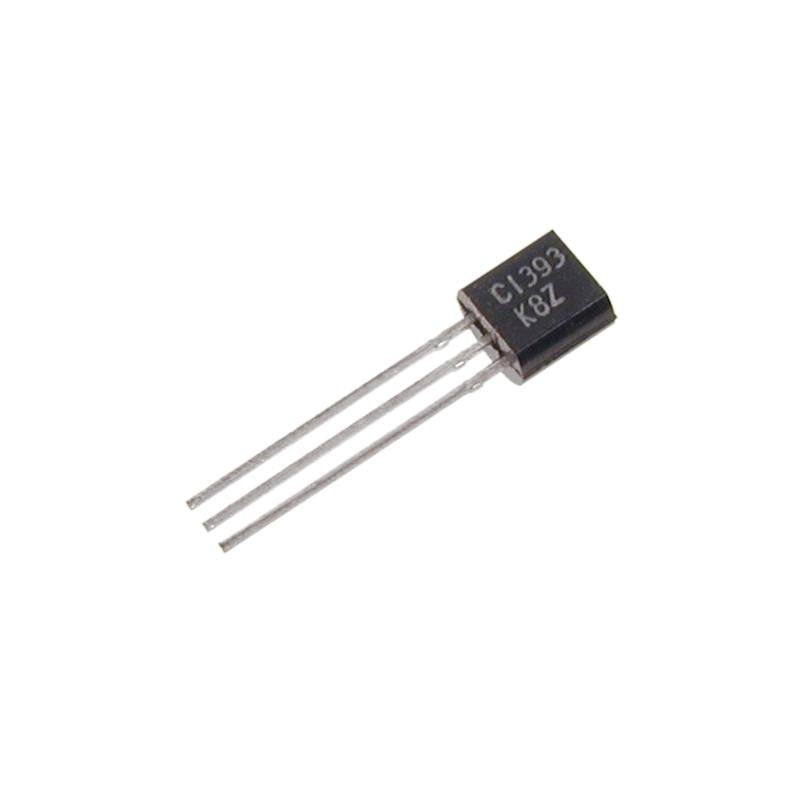

2SC1393 C1393 NPN 30V 20mA TO-92 Transistor

Type Designator: 2SC1393

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.25 W

Maximum Collector-Base Voltage |Vcb|: 30 V

Maximum Collector-Emitter Voltage |Vce|: 30 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.02 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 400 MHz

Collector Capacitance (Cc): 0.5 pF

Forward Current Transfer Ratio (hFE), MIN: 40

Noise Figure, dB: -

Package: TO92
